NSK America Corporation introduces two NLZ Electric Micromotor Systems with new technology, faster performance, compact design and a new proprietary contra angle check function. The new NLZ has the highest torque in its class (4.2 Ncm) with the smallest dimension. The endodontic version, NLZ E, has both a reciprocating and rotary function, making it compatible with WaveOne® files.
The NLZ is a compact powerhouse with 36 percent more torque than any other motor in its class! It easily cuts through EMAX, Zirconia and PFM. Using new technology, the NLZ is more powerful, yet lighter and with less heat generation than our existing models. The conventional magnet rotor has been replaced with an improved magnet rotor to provide a more powerful rotation. The unique water and air lines are now integrated with the motor to make maximum use of the space. Using a simple non-layered coil, it is as compact as possible, shortening the pathway for heat generating current. As a result, it generates less heat without reducing the power.

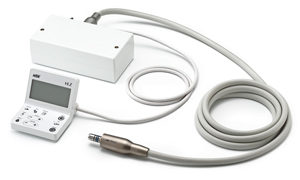

A totally new installation style separates the control unit from the main unit. Every part of the NLZ has been made more compact to minimize the required space for installation. The Main Unit (W146 x D75 x H48mm) fits under the counter, keeping only the Control Unit (W76 x D87.1 x H63.4mm) visible.
NLZ’s new Contra-Check Function helps detect abnormalities caused by deterioration of the electric attachment and insufficient maintenance before use. To use it, just connect the electric attachment to the motor, press the Check key and view the results on the Control Unit. It will indicate whether the attachment needs oil, repairs or if it is ready to use.

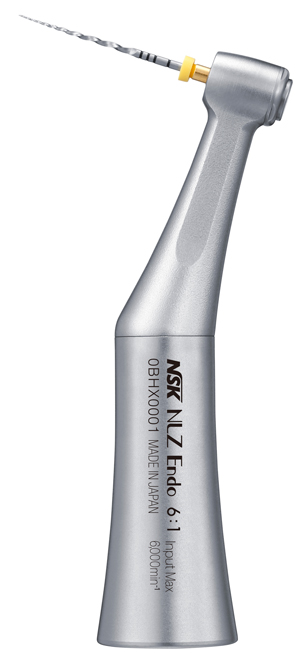

The NLZ E endo motor has both rotary and reciprocating functions, which allow it to work with DENTSPLY Sirona’s WaveOne® files. A large rotating angle in the cutting direction provides high efficiency, whereas a smaller angle in the reverse direction allows the WaveOne® file to safely progress along the canal path, whilst reducing the risk of a screwing effect and file breakage.
NSK’s all new NLZ can help any user of air driven hand pieces convert to electric and enjoy the full benefits of this smart system. A big change in treatment environment is brought with only a minor addition to the current equipment in your office.
Visit www.nskdental.us for more information.
Editor’s note: Sponsored by NSK.
